BMW 540d/ 640d/ 수입차터보차저정보<명준 Turbo ATD>

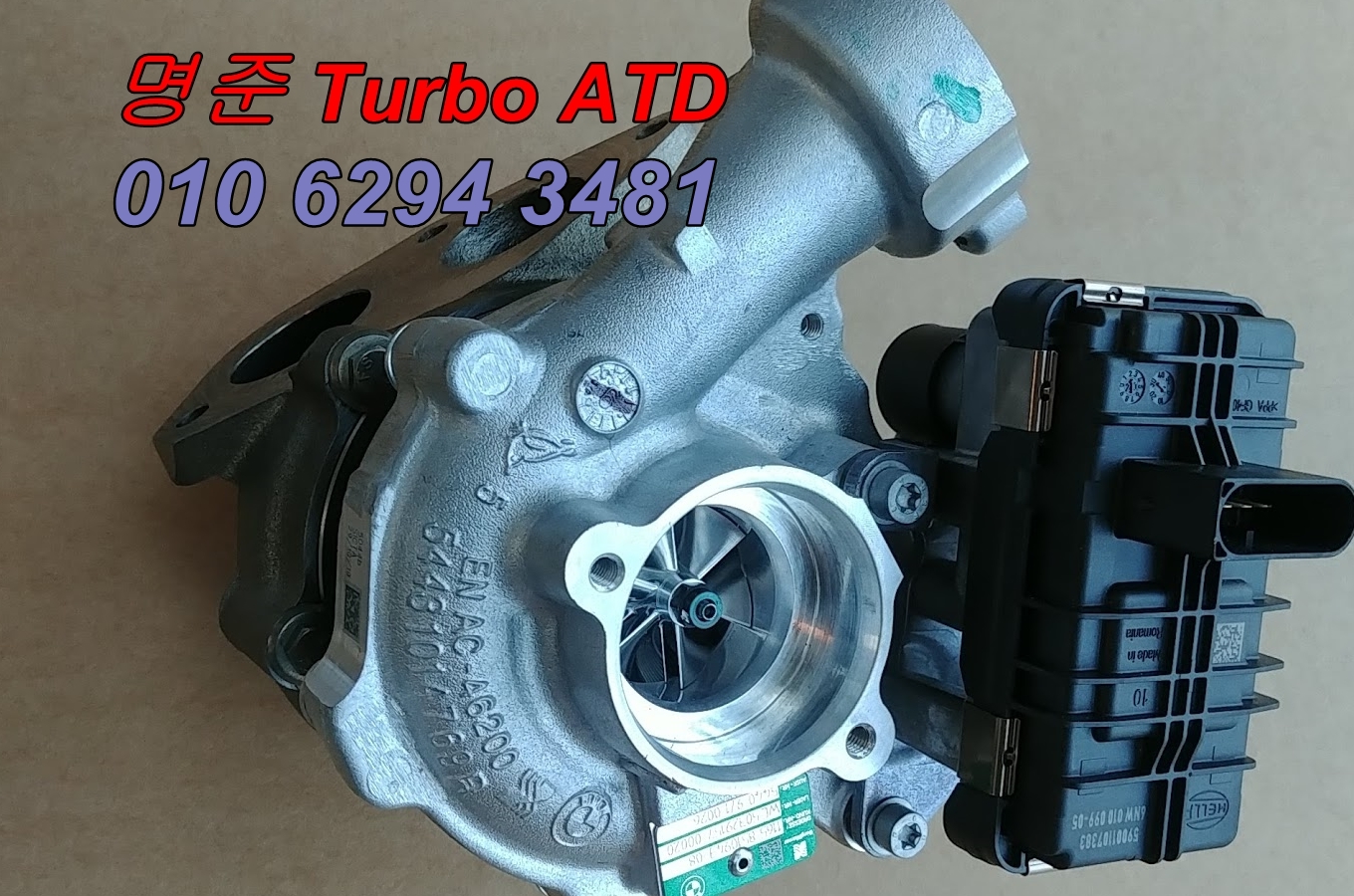

F12 640d는 고압터보차저가 잘 고장납니다.

터보관련문의: 010 6294 3481

---

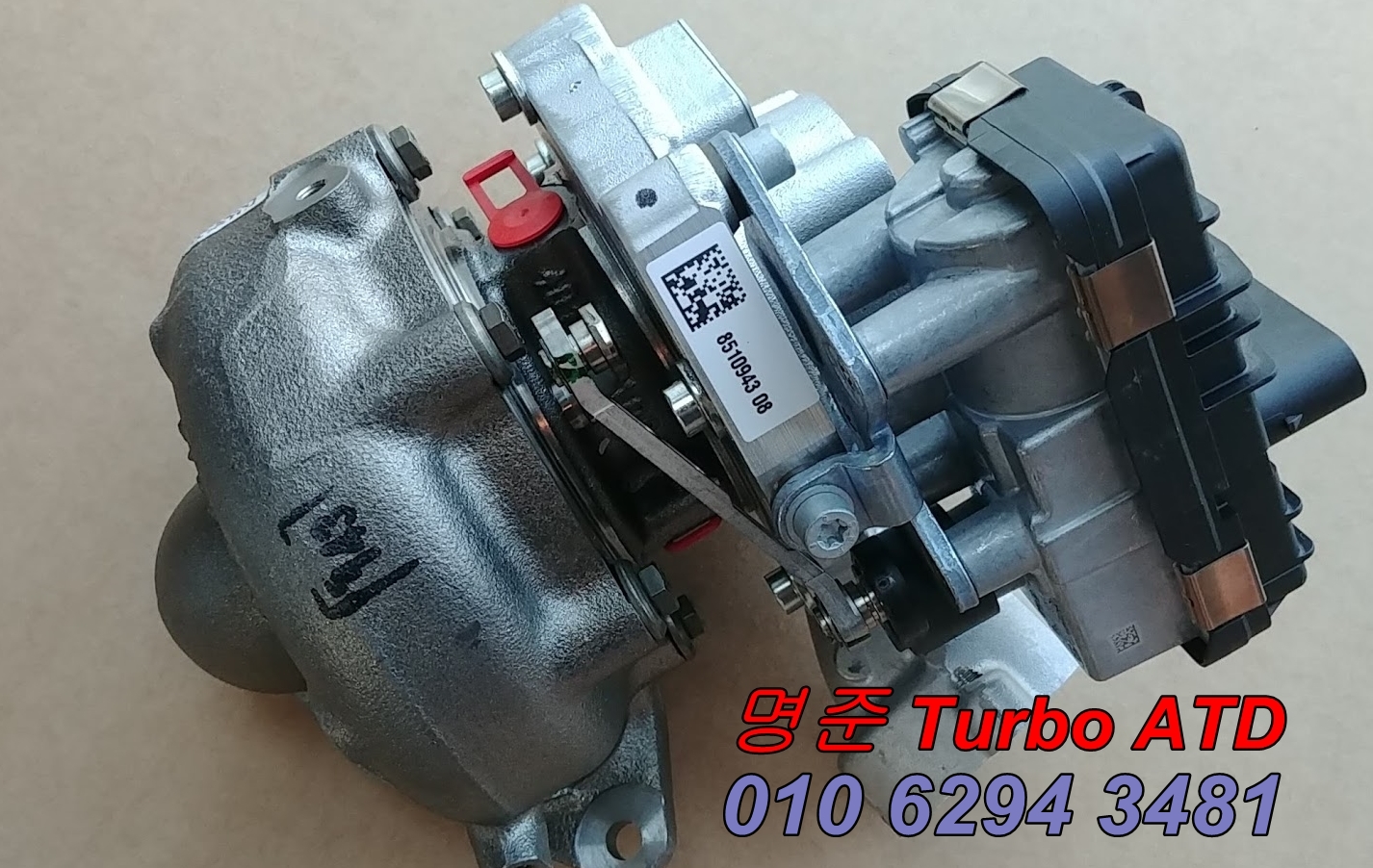

 정품신품터보(파격가)와 터보엑츄에이터

중국산터보, 모조터보,중고터보는 취급하지 않습니다.

차대번호나 엔진형식을 알려주시면 보다 상세한 정보를 제공할 수 있습니다.



엔진형식: N57D30B



터보차저 규격: BV40 / K26



동일터보장착차종

3' F30 LCI   (01/2015 — 10/2018)

3' F31 LCI   (01/2015 — 05/2019)

3' F34 GT LCI   (01/2016 — 12/2019)

4' F32 LCI   (06/2016 — 12/2019)

4' F33 LCI   (05/2016 — 12/2019)

4' F36 Gran Coupé LCI   (07/2016 — 12/2019)

5' F07 GT LCI   (10/2012 — 02/2017)

5' F10 LCI   (10/2012 — 10/2016)

5' F11 LCI   (10/2012 — 02/2017)

6' F06 Gran Coupé LCI   (05/2014 — 06/2018)

6' F12 LCI   (05/2014 — 05/2018)

6' F13 LCI   (05/2014 — 10/2017)

7' F01 LCI   (05/2011 — 05/2015)

X3 F25   (02/2011 — 08/2017)

X4 F26   (05/2013 — 03/2018)

X5 F15   (01/2013 — 06/2018)

X6 F16   (01/2014 — 05/2019)





아래는 참고사항입니다. 관심있는 분만 보세요

Unlike other twin-turbo systems, 2-stage variable twin-turbo employs different size turbos - a small one for quicker spool up at low rpm and a large turbo to take care of higher rev. They are connected in series so that the boost pressure from one turbo is further multiplied by another turbo, hence the name "2-stage". The distribution of exhaust gas is continuously variable, so the transition from small turbo to big turbo can be made seamless. Below is an example taken from an Opel system. Let's see how it works:

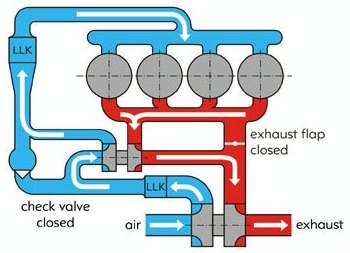

Below 1800 rpm
The exhaust flap is closed. All the exhaust gas drives the small turbo, which provides all boost pressure in this phase. The large turbo runs idle and does not contribute to compression.

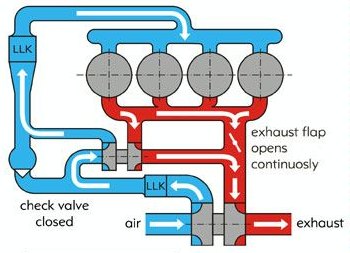

1800-3000 rpm
The large turbo is now brought into action, so that both turbos run together. Depending on load, the exhaust flap opens increasingly and feeds exhaust gas to both turbos. The large turbo pre-compresses the air, which is then cooled in the intercooler and raised to higher boost pressure in the small turbo.

The check valve remains closed, since the large turbo's boost pressure is still lower than that of the small turbo.

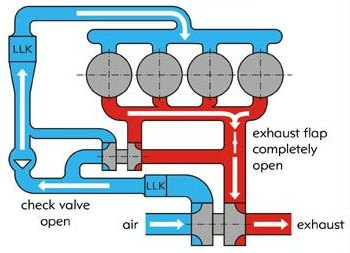

Above 3000 rpm
Only the large turbo compresses the air, because more air can flow through it than the small turbo. The exhaust flap is now completely open and the entire exhaust gas flows through the large turbo, which produces maximum boost.

The check valve is opened by the gas flow from large turbo. This bypasses the small turbo.

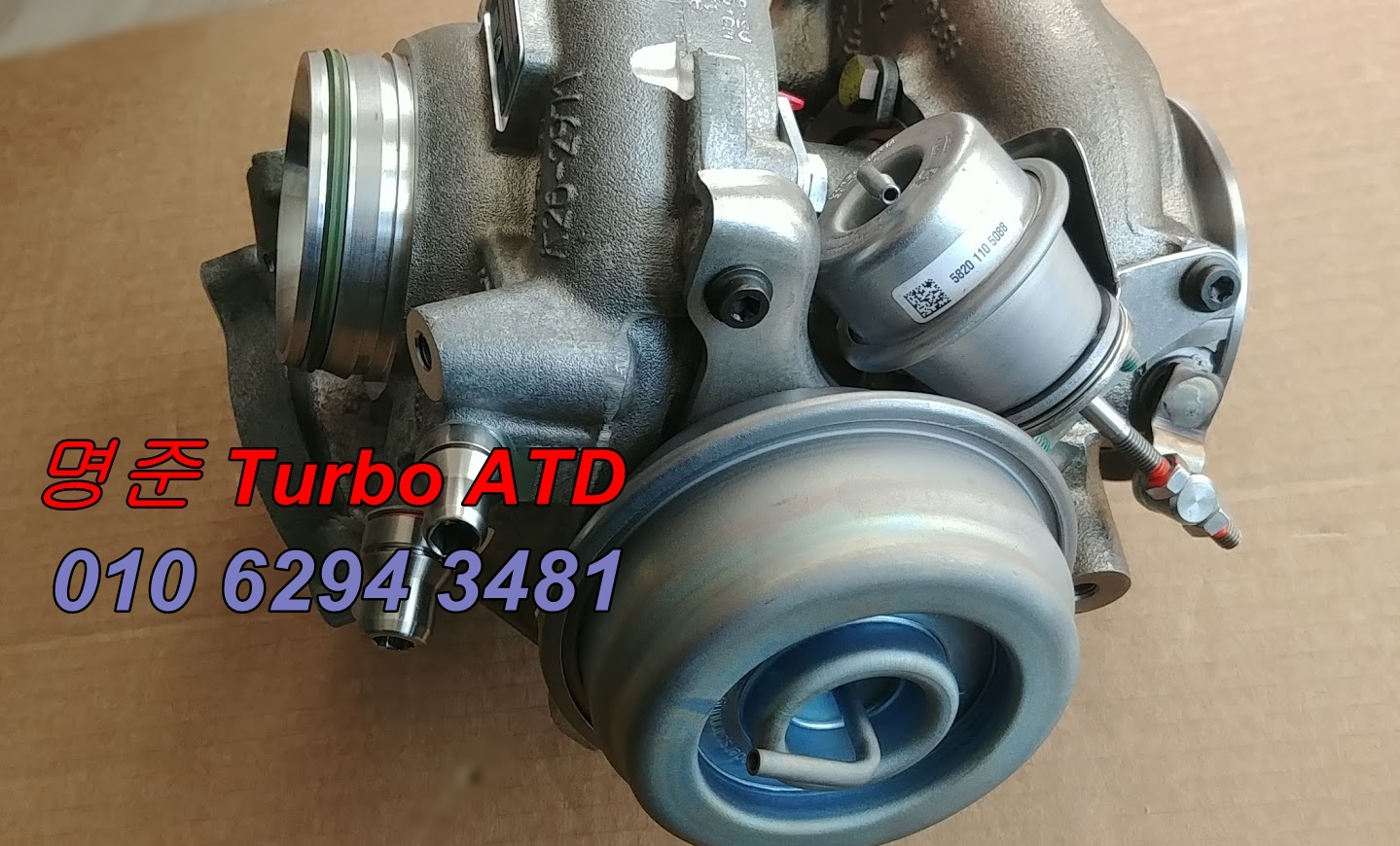

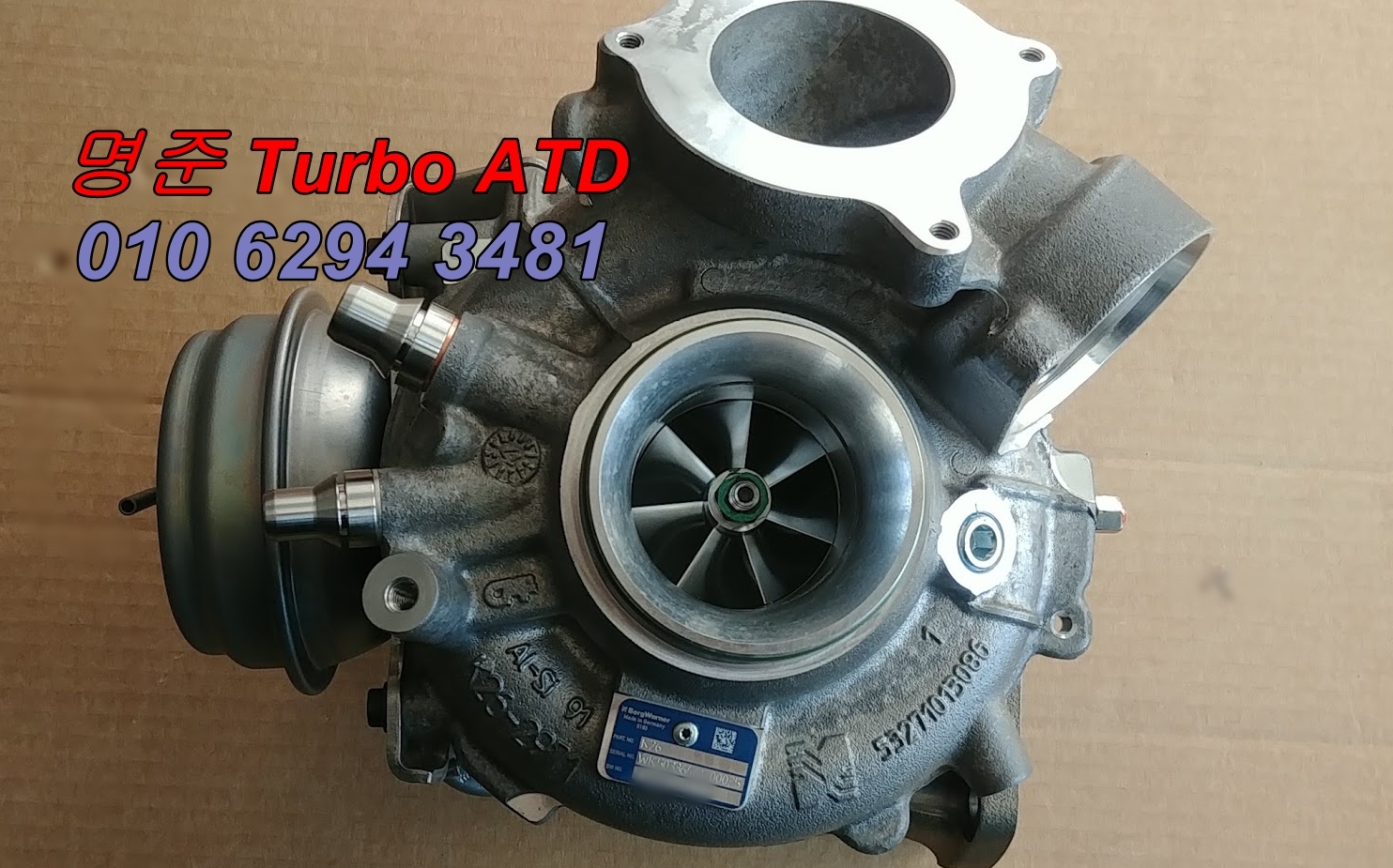

 저압터보

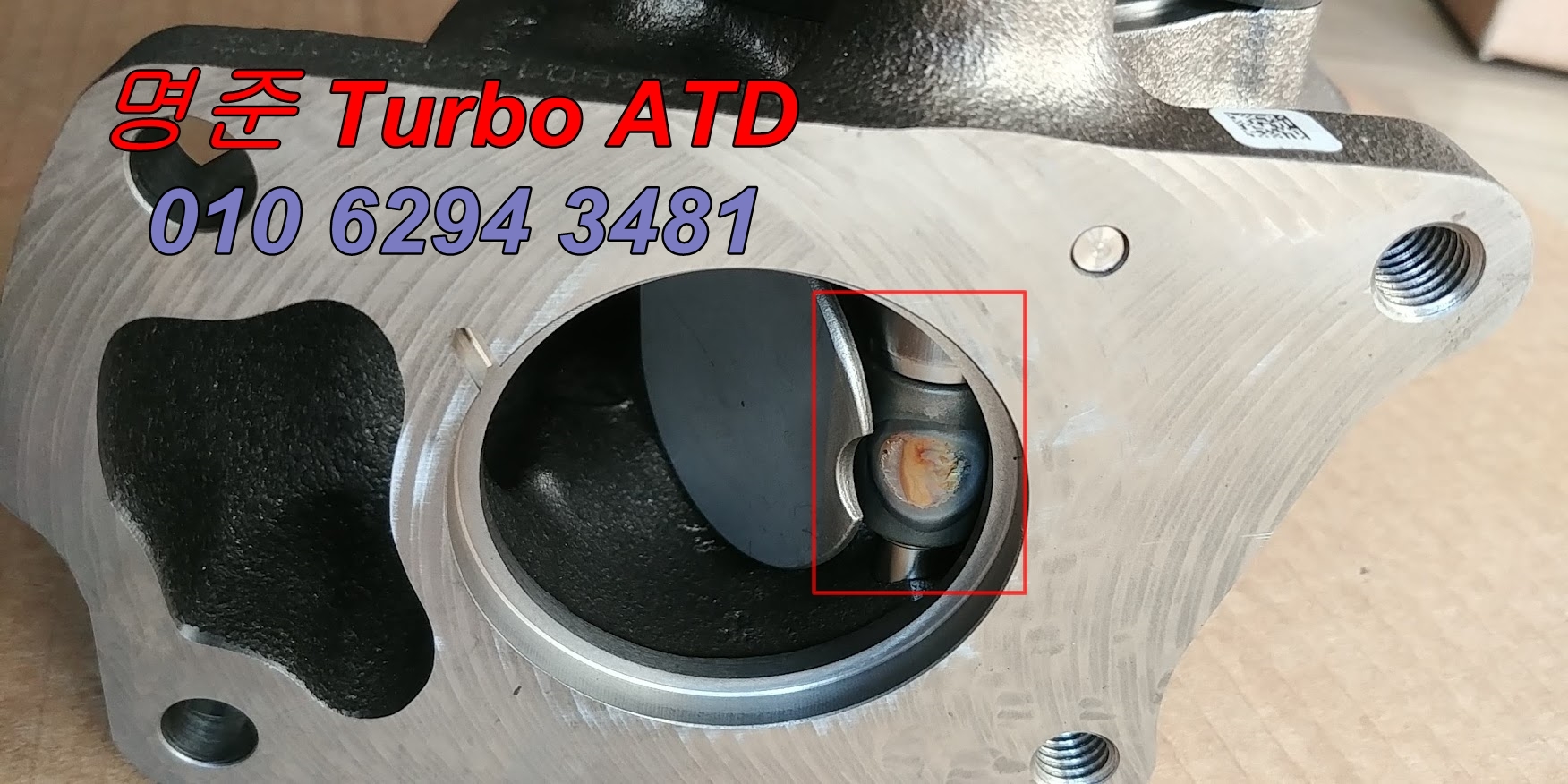

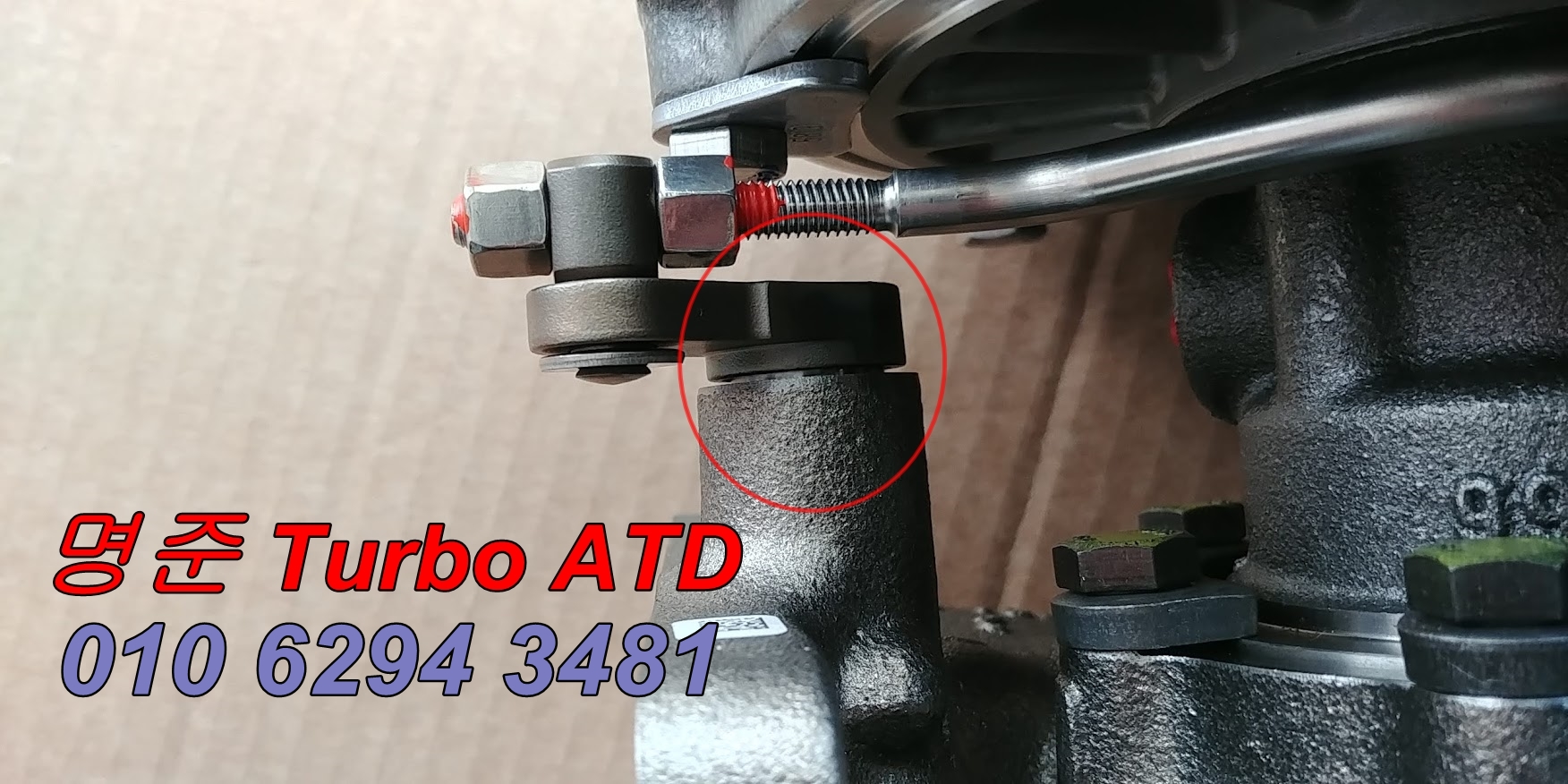

부스트관련코드와 관련이 있는 곳

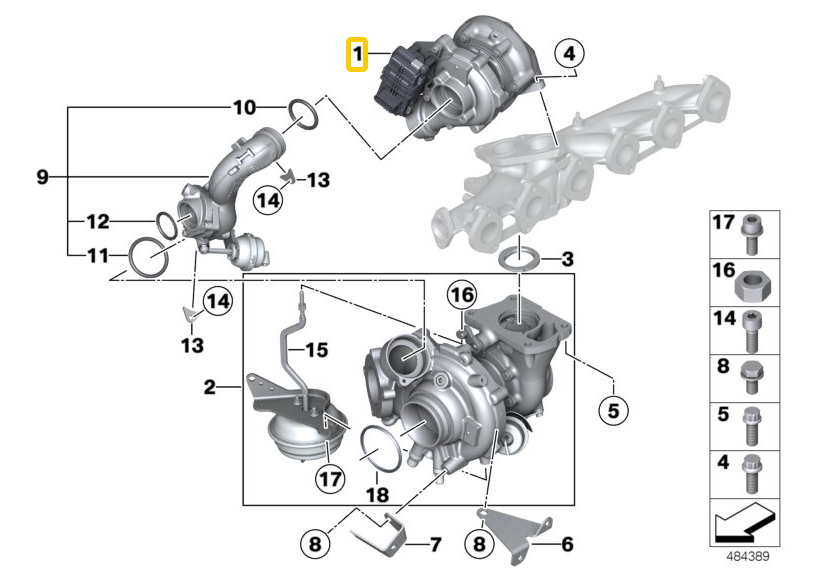

부품도
